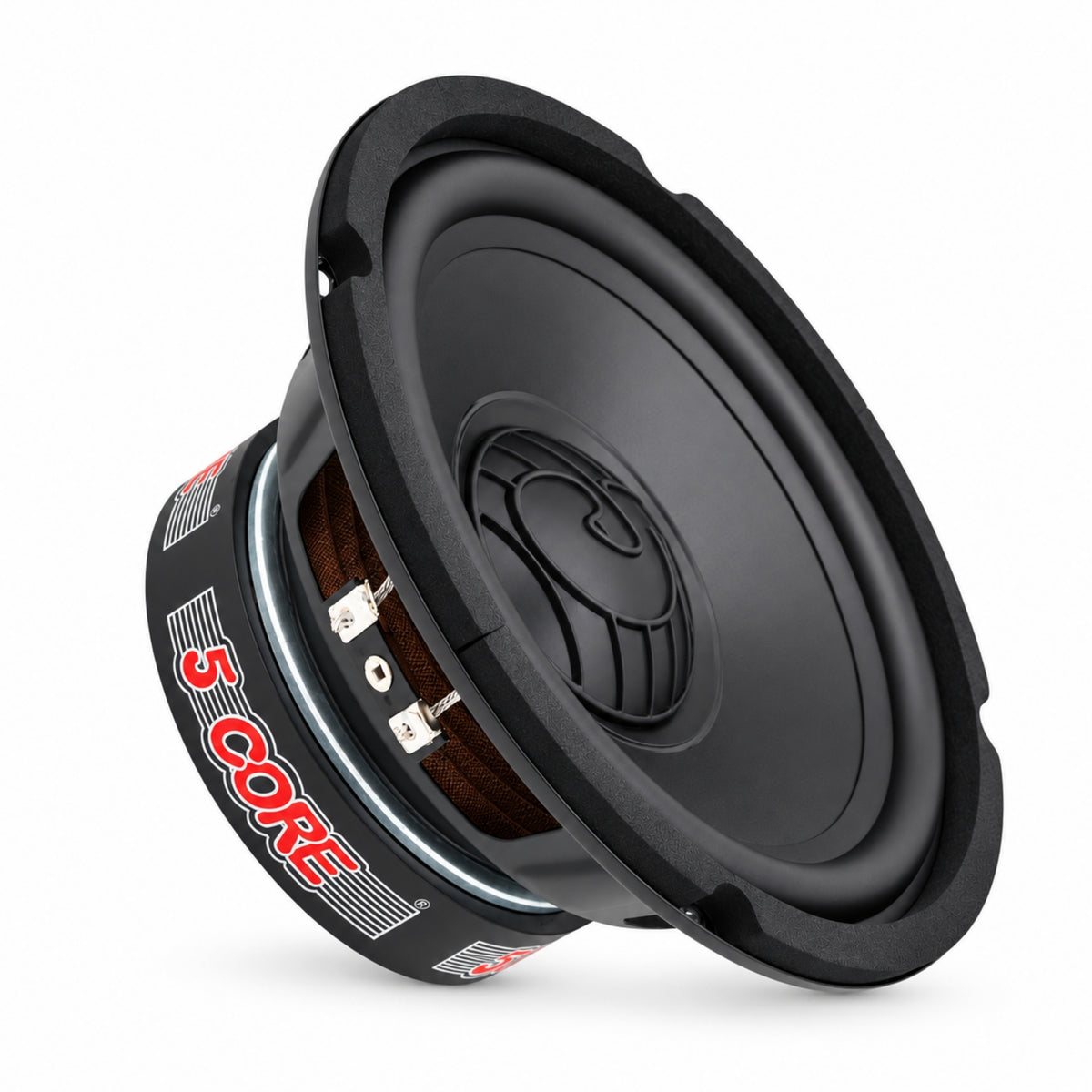

8 INCH 1000W CAR WOOFER - Built to bring stronger bass presence to your car audio system, this 8 inch woofer will maximize bass quality while reducing noise and distortion.

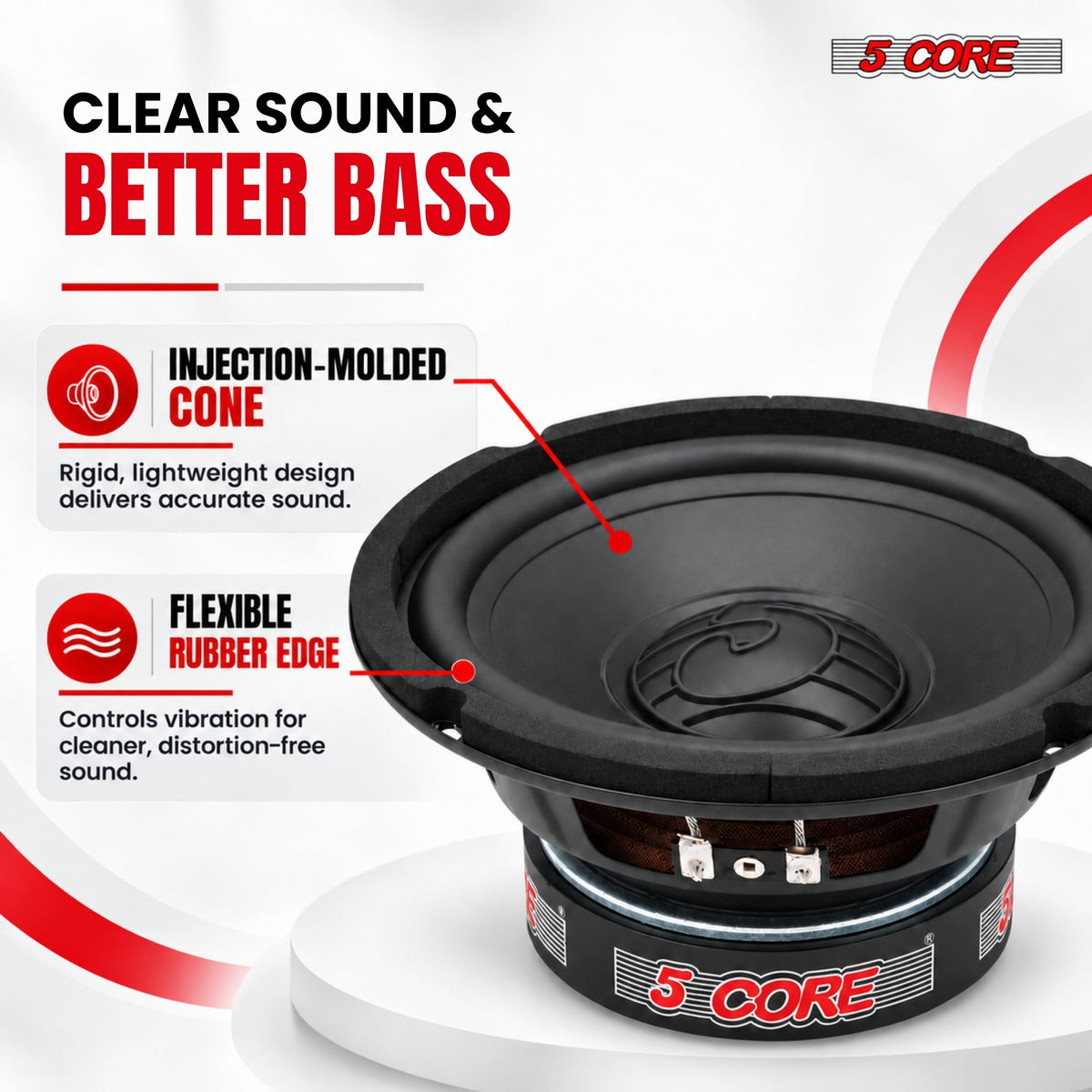

POLYPROPYLENE CONE FOR RESPONSIVE SOUND - The polypropylene cone is designed for a responsive audio experience, helping your car system deliver tight bass with clarity.

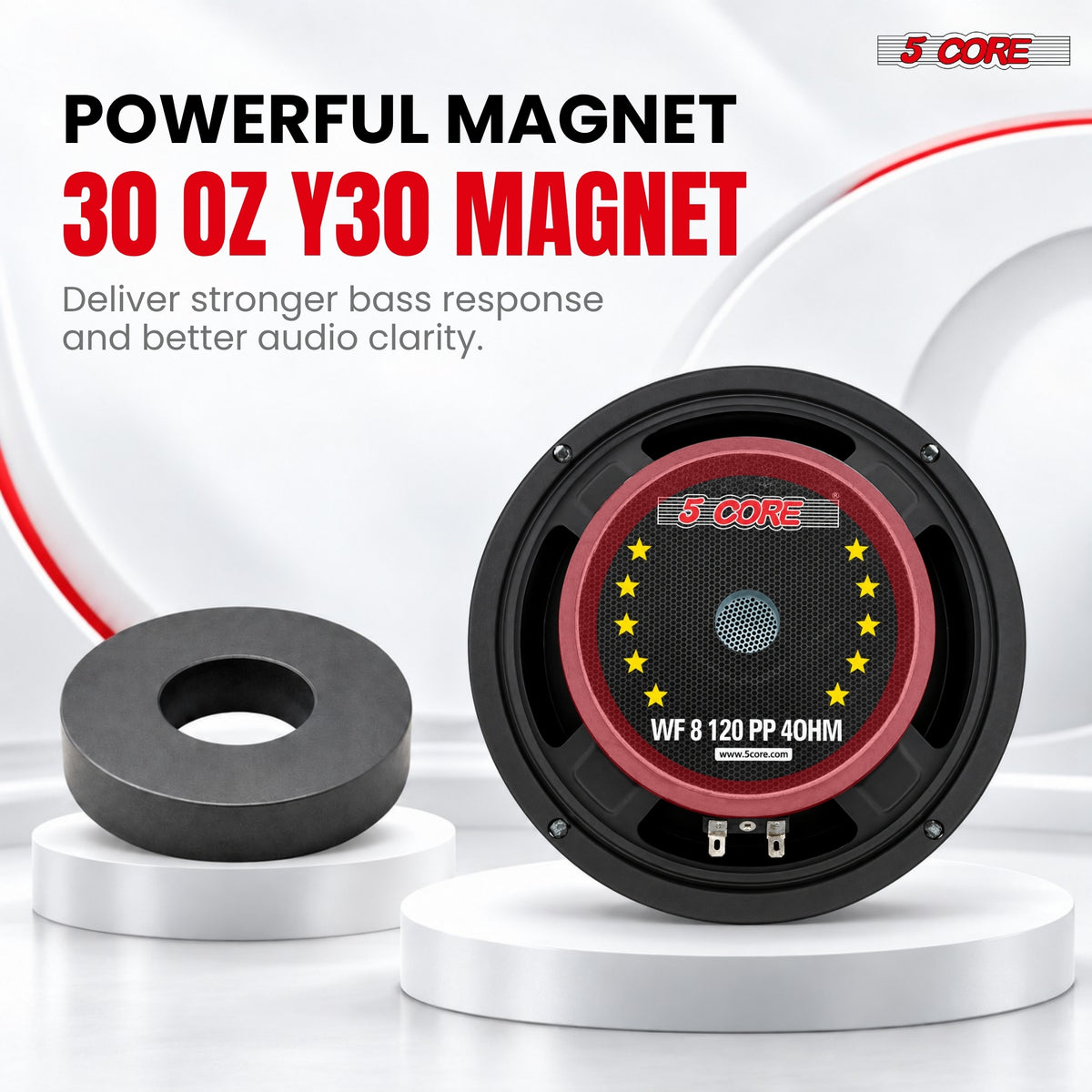

30 OZ MAGNET STRUCTURE - A 30 Oz magnet provides the magnetic drive behind the woofer, supporting the cone's movement to produce deep, tight and clean bass.

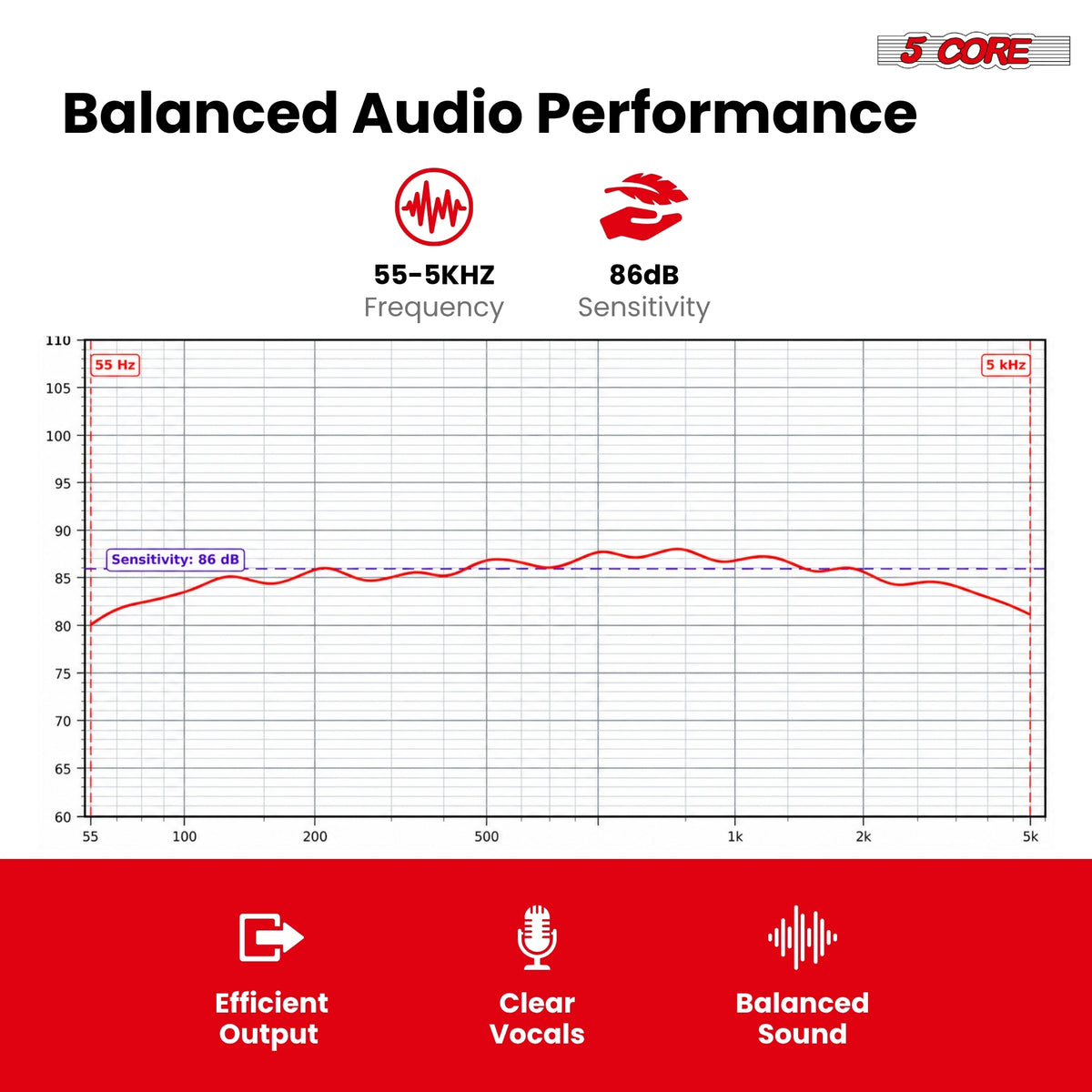

DEEPER, PUNCHIER BASS - With 55-5KHZ low-frequency, this car woofer adds more depth and punch to your music, helping bring out the bass you can feel during everyday drives.
UNIVERSAL COMPATIBILITY - The 4 Ohm impedance rating makes this car woofer suitable for the vast majority of car amplifiers, receivers, helping you build, upgrade or replace low power OEM woofer easily.
8 Inch Woofer Description
|
Upgrade your car audio with this 8 inch car woofer, designed to add deeper, punchier bass to your music. With 100W RMS and 1000W peak power, it delivers powerful bass response for an immersive listening experience. The 1.5-inch ASV voice coil and 30 Oz magnet support responsive performance, while the polypropylene cone helps produce controlled, clear bass. With 4 Ohm impedance and 86dB sensitivity, this bass speaker works with compatible car audio equipment for easy system matching. Ideal for music lovers looking to enhance their car speakers with dedicated low-frequency performance, this 8 inch subwoofer brings more depth and impact to every drive. |
Features
|
HEAT-RESISTANT DESIGN |
ENHANCED BASS RESPONSE |
86 DB SENSITIVITY |
EASY INSTALLATION |
|
The ASV voice coil and vented structure allow better airflow, preventing overheating during extended use. |
Engineered for maximum cone excursion, this woofer delivers deeper bass hits with minimal distortion—ideal for bass lovers. |
High sensitivity ensures louder output with less power. Get more volume and clarity in your speakers for cars or speaker driver systems. |

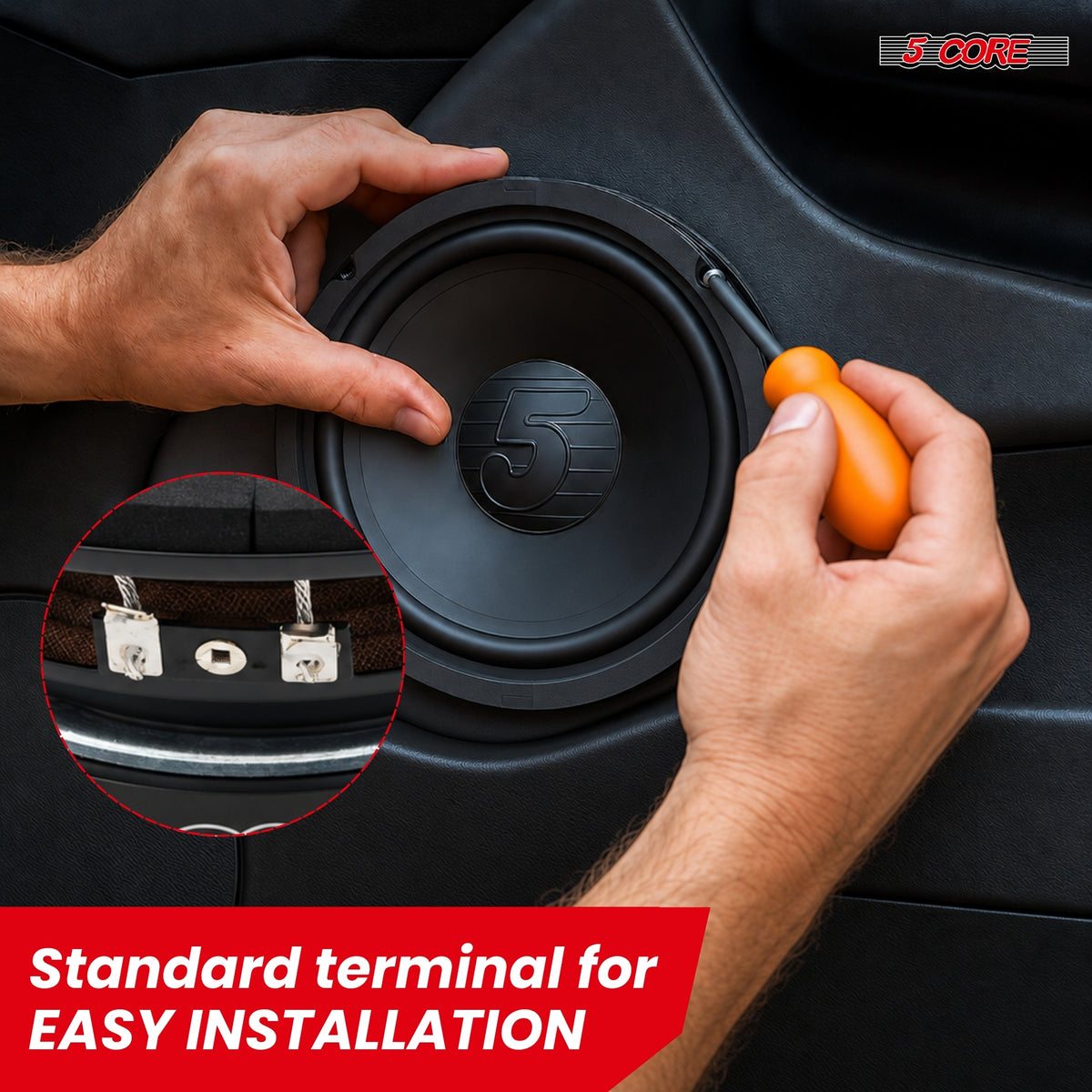

Standard 8 inch size and terminal compatibility make this woofer speaker quick to mount in most car enclosures. |

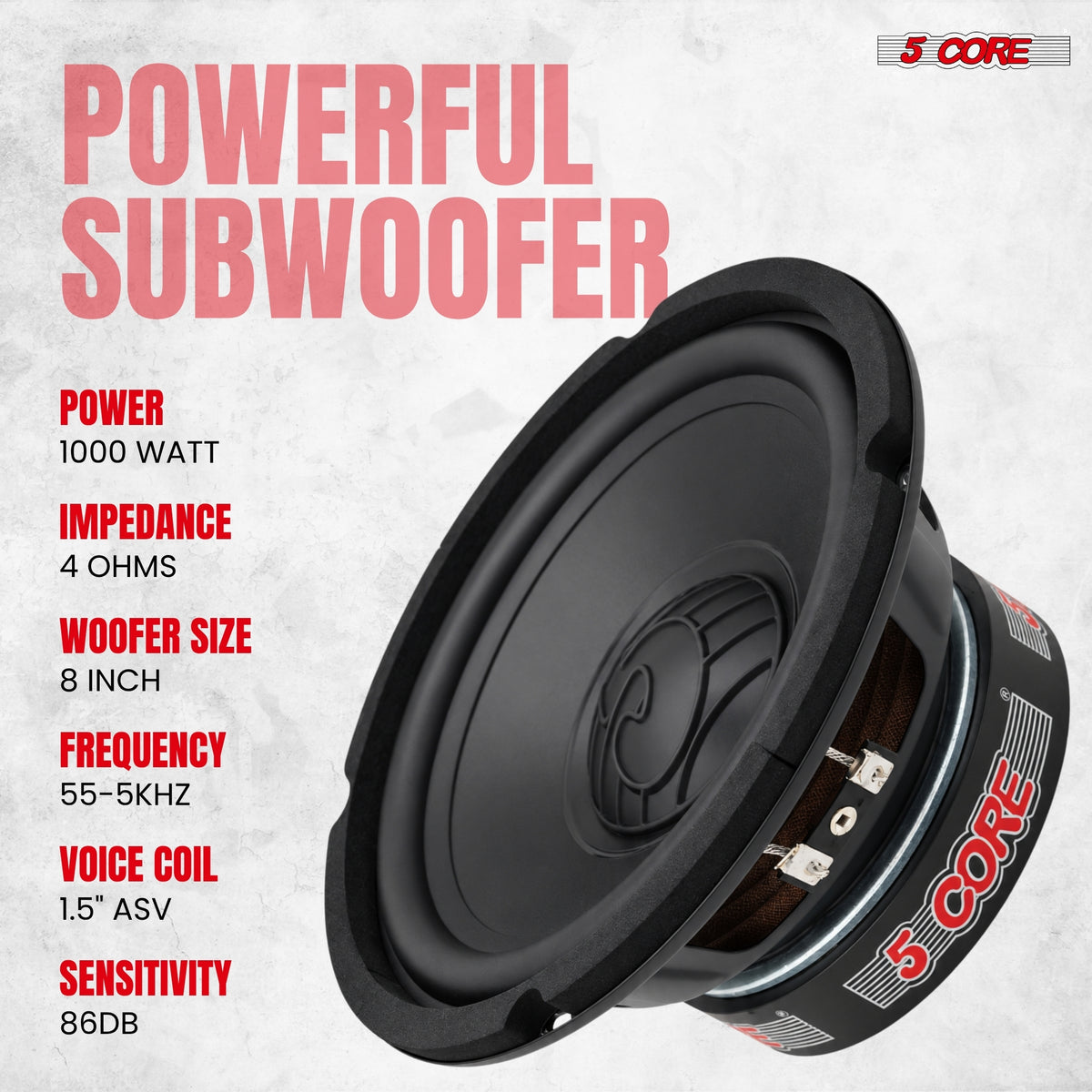

Woofer Technical Specification:
-
Speaker Type: Woofer
-

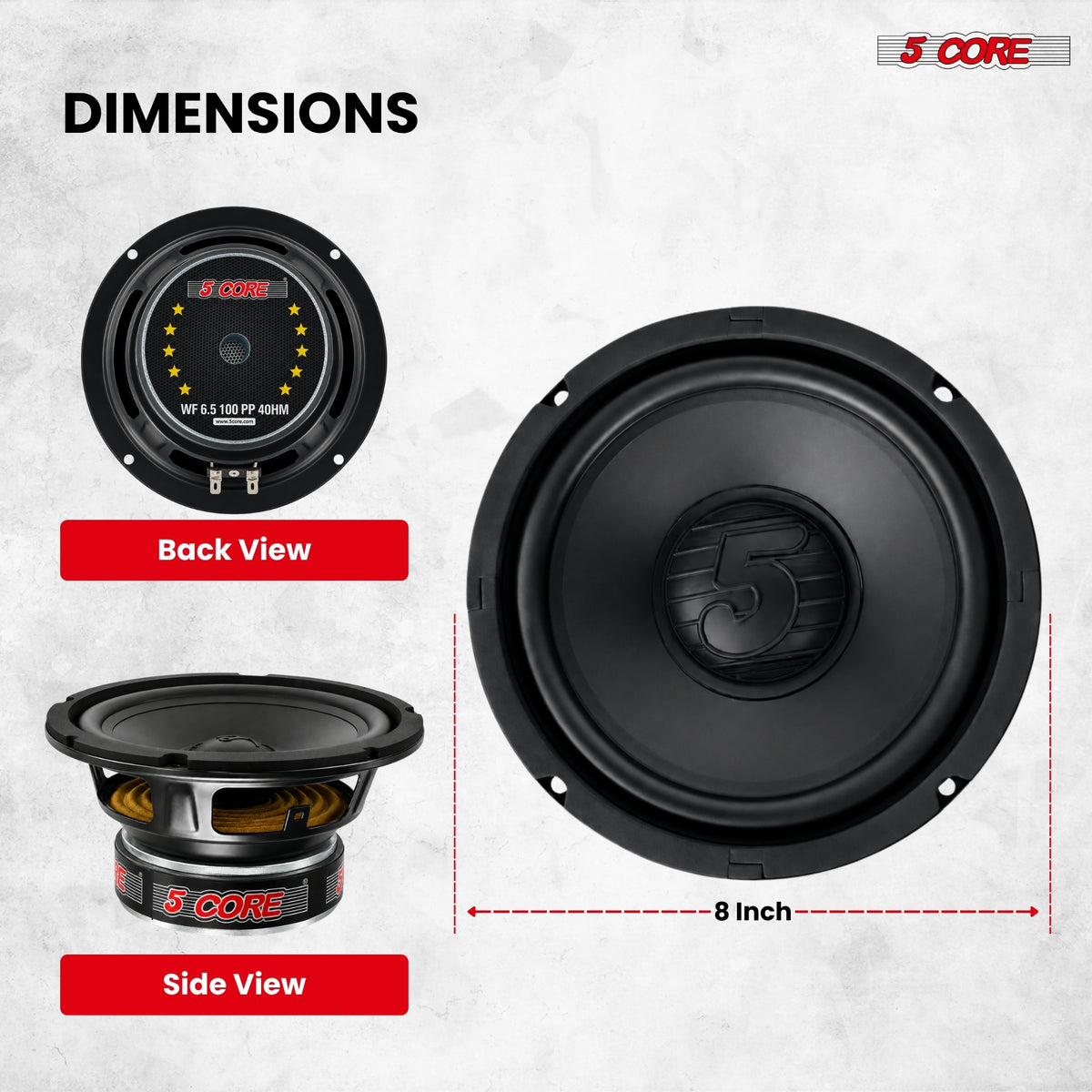

Woofer Size: 8 Inch
-
RMS: 100W
-
Peak Power: 1000W
-

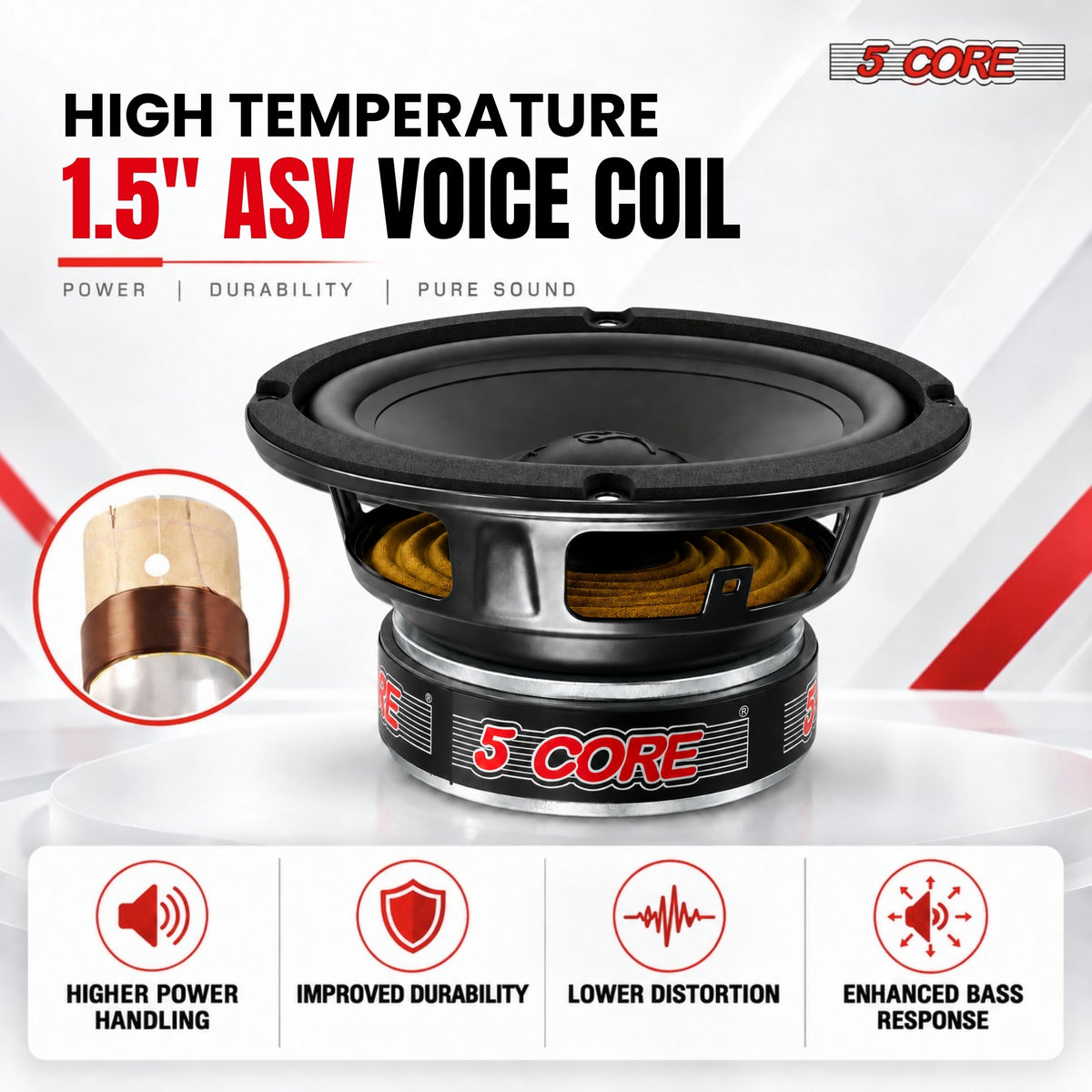

Voice Coil Size: 39MM (1.5")
-
Voice Coil Material: ASV
-
Voice Coil Impedance: 4 Ohms
-
Voice Coil Layers: 2
-
Magnet Size: 30 Oz
-
Frequency range: 55-5KHZ
-
Cone material: Polypropylene
-
Sensitivity: 86dB
Woofer The Small Parameter
-
Bl - 9.33
-
Fs - 55.66
-
Re - 4
-
Sd - 2.22E-02
-
Cms - 0.169
-
Mms - 48.368
-
Qes - 0.7773
-
Qms - 2.5092
-
Qts - 0.5935
-
Vas - 11.59
-
Sensitivity - 86
Package Information:
-
1x 8 Inch Sub Woofer
