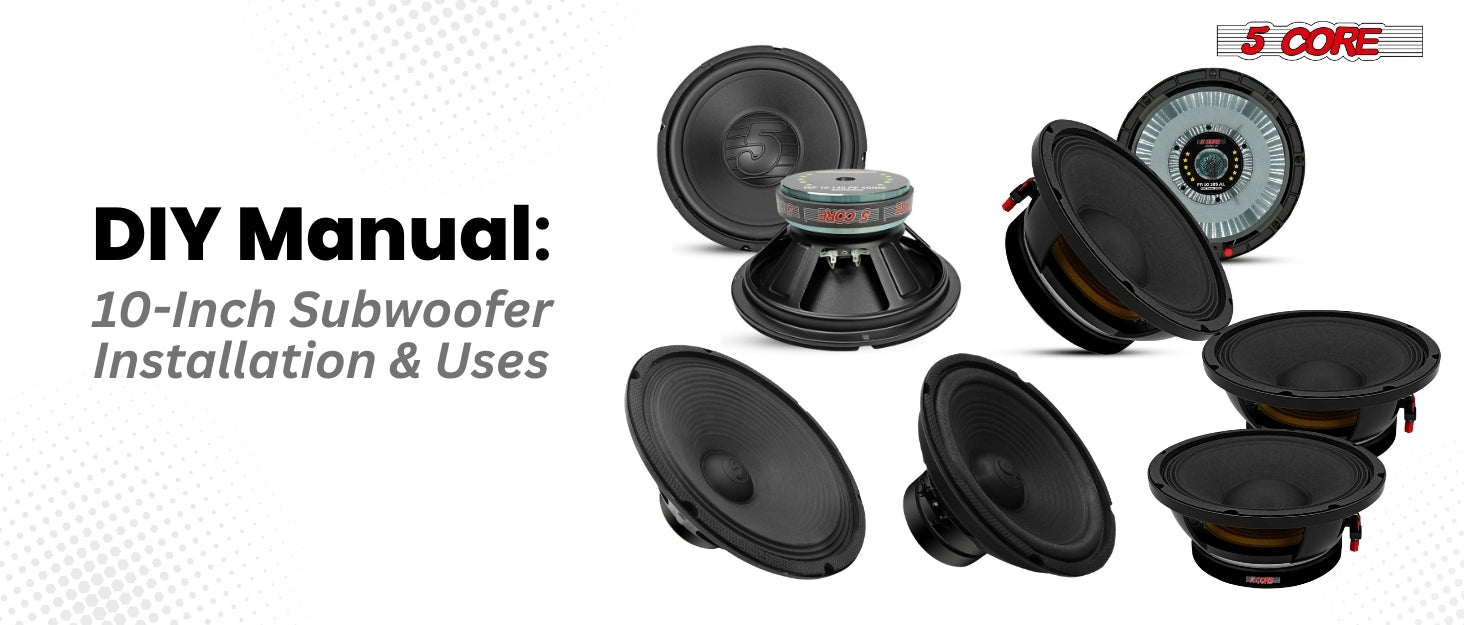

DIY Manual: 10-Inch Subwoofer Installation & Uses

✅ Product Overview

Bring your car audio to life with this 10-inch 600W PMPO subwoofer, engineered for deep bass, wide frequency response (40Hz–4kHz), and durability. Perfect for car sound upgrades or DIY audio projects.

📦 What’s in the Box?

• 1x 10-Inch Subwoofer Unit

🔧 Tools You’ll Need

• Phillips Screwdriver


• Wire Cutter/Stripper


• Soldering Iron (optional)


• Mounting screws


• Amplifier with 4-ohm compatibility


• Subwoofer enclosure (pre-built or custom box)


🔌 Technical Specifications

🛠️ Installation Guide

Step 1: Prepare the Enclosure

Choose a sealed or ported subwoofer box based on your sound preference. Ensure it matches the sub's mounting depth (104mm) and dimensions.

Step 2: Mount the Subwoofer

• Place the subwoofer into the box cutout.


• Use the included screws or appropriate mounting screws.


• Make sure it’s tightly sealed (add a gasket for airtight fit).


Step 3: Wiring

• Identify the positive (+) and negative (−) terminals on the subwoofer.


• Connect speaker wires from the amplifier’s sub output to the terminals.


• Use 12–16 AWG speaker wire for best performance.


Tip: Solder the wires for a stronger and lasting connection.

Step 4: Connect to Amplifier

• Ensure the amplifier supports 4-ohm impedance.


• Adjust gain and crossover settings. Start low to avoid distortion.


Step 5: Test & Tune

• Play bass-heavy music and gradually increase volume.


• Adjust the amp settings until you find the perfect balance of power and clarity.


🎵 Best Uses

✅ Car Audio Systems – Enhance your car’s bass response dramatically.
✅ Home Theater Projects – Pair with a dedicated amp for home subwoofer setups.
✅ DIY Speaker Cabinets – Ideal for custom portable or fixed systems.
✅ Garage or Event Sound – Use in small portable PA or event systems needing low-end punch.

💡 Pro Tips

• Break-in Period: Play at medium volume for 10–15 hours to allow the suspension to loosen and optimize sound.


• Avoid Overpowering: Stay within the 60W RMS limit for consistent performance and longevity.


• Ventilation: Ensure airflow to avoid overheating, especially during extended use.


🚫 Common Mistakes to Avoid

• ❌ Skipping enclosure: Never run the sub without a box—it won’t deliver the right bass.


• ❌ Mismatching impedance: Always match amp and sub impedance (4 Ohm in this case).


• ❌ Clipping signals: Set amp gain properly to avoid sound distortion or damage.


🧠 Summary: Why Choose This Subwoofer?

• 🔊 Rich, Full Bass: 40Hz–4kHz coverage with rubber cone and 30 Oz magnet.


• 🔥 Heat Resistant: 2” CCAW voice coil sustains power over long sessions.


• 🔩 Flexible Installation: Fits most car enclosures and amps.


⚡ Efficient Power Handling: Great bass output without draining your system.
