About Item:

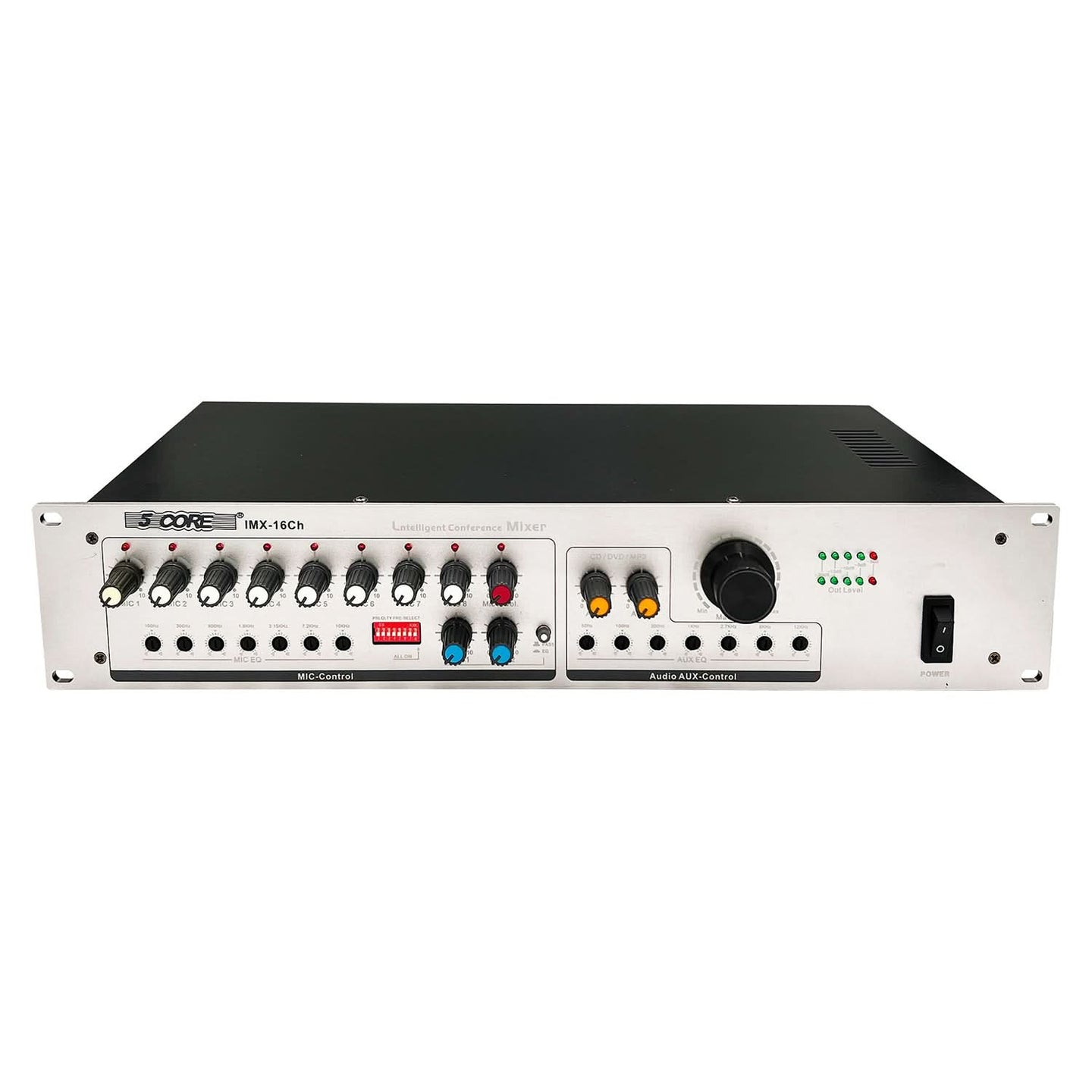

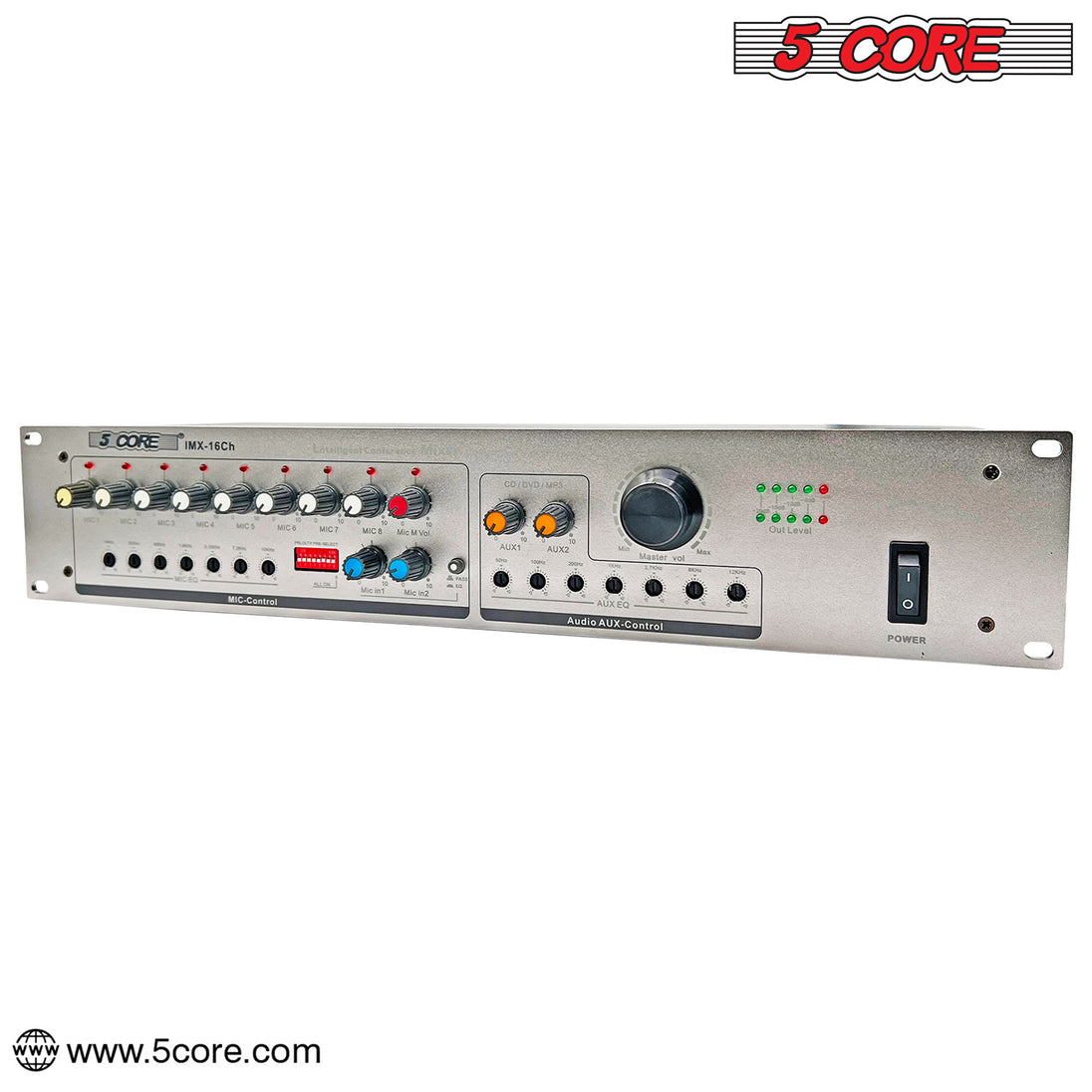

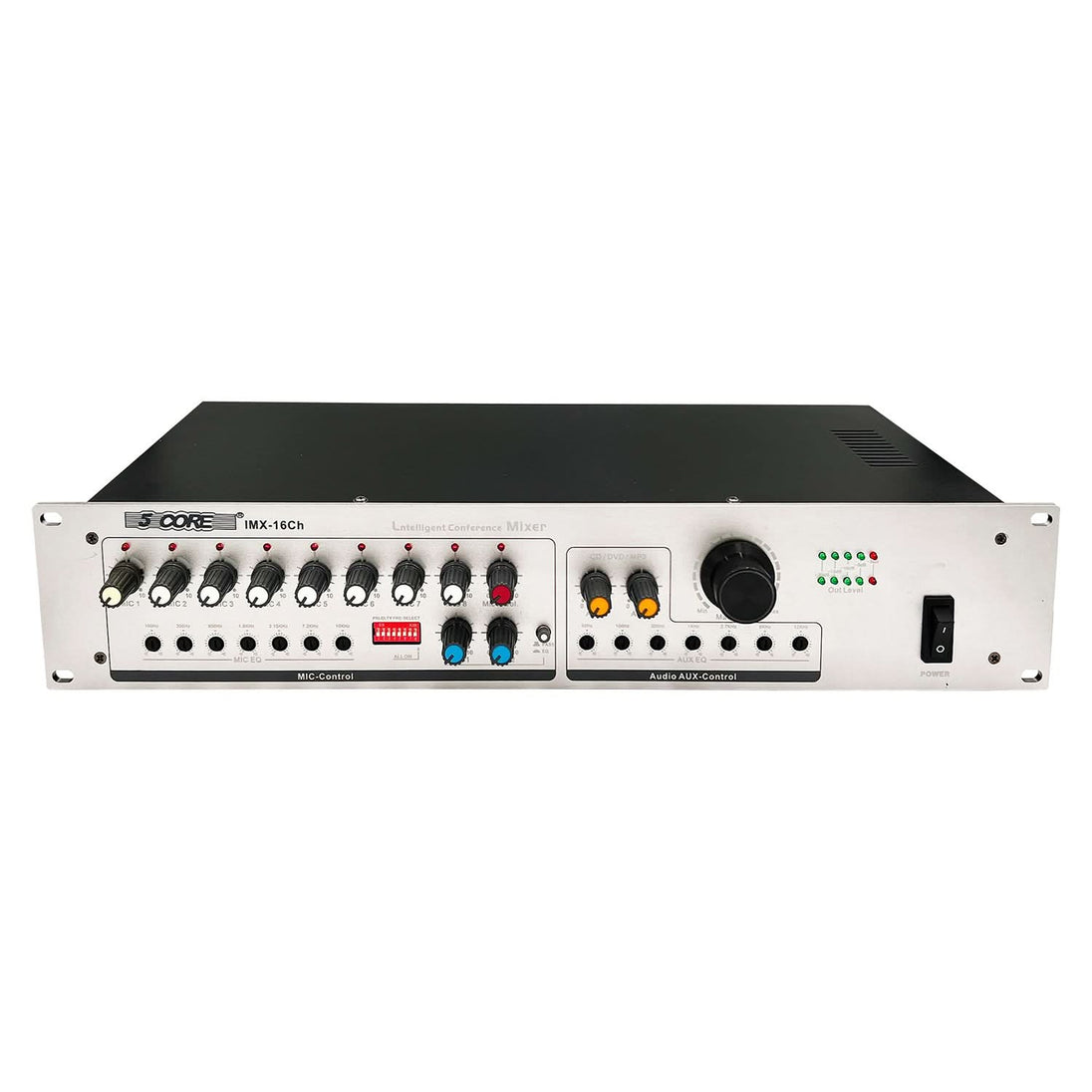

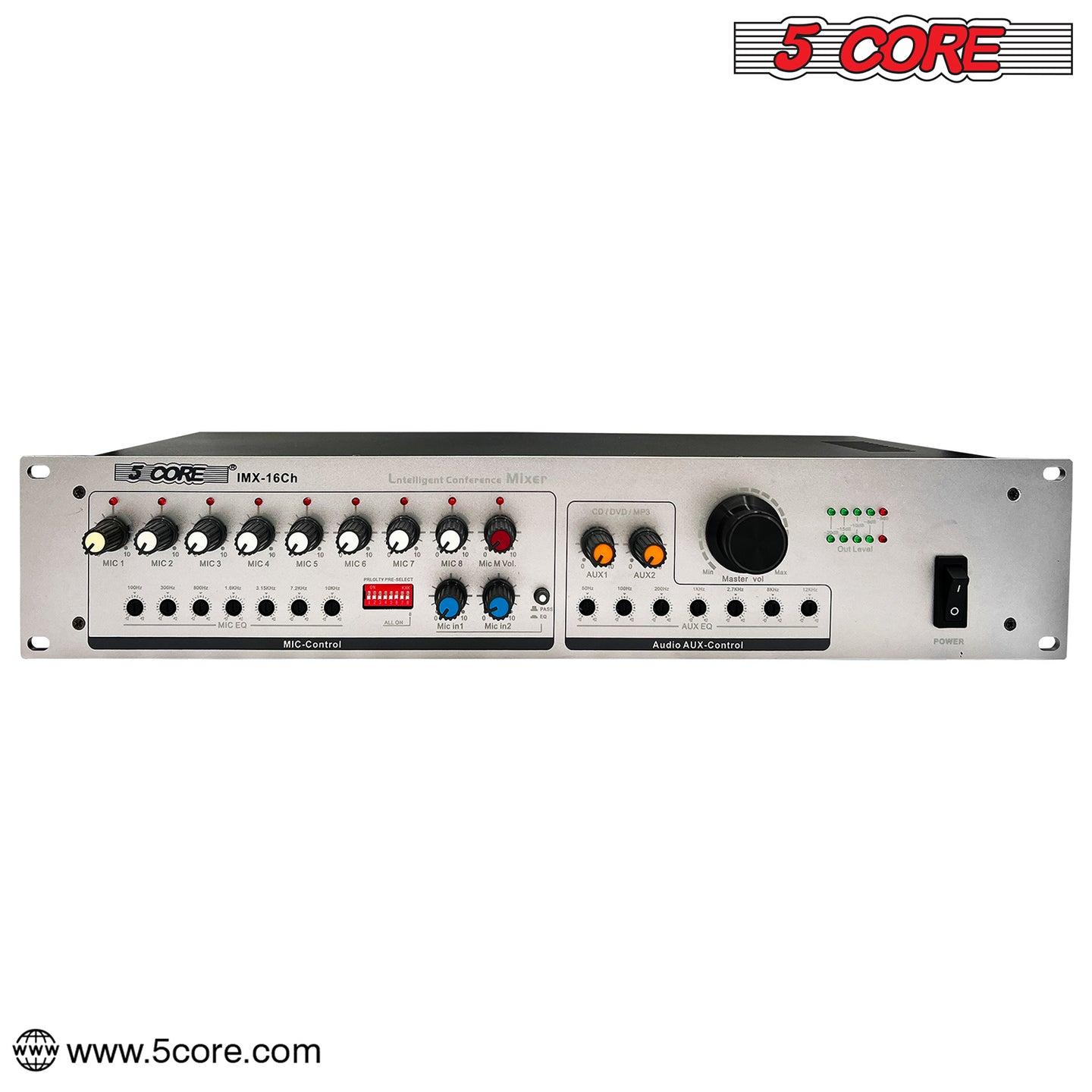

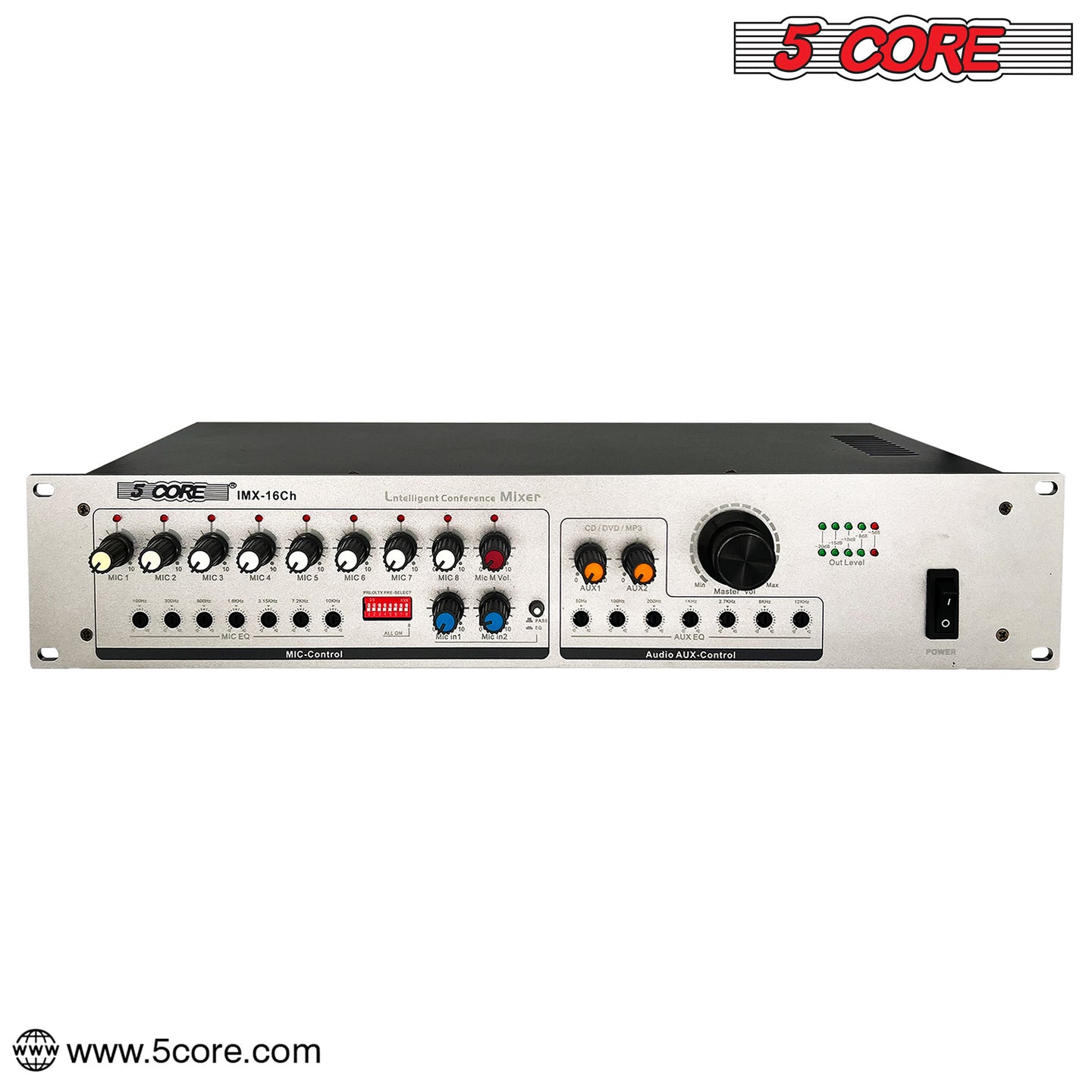

【16-Channel Microphone Mixer】Offering ample connectivity for multiple microphones and instruments, ideal for large and small setups.
【Superior Sound Quality】Frequency response of 20Hz-20KHz and a distortion degree of just 0.03% delivers crystal-clear audio.
【Individual Pitch EQ Controls】Allowing precise control over bass, mid, and treble frequencies, so you can tailor the sound to your exact needs.
【48V Phantom Power】Across conference microphone channels 1-8, ensuring compatibility with condenser mics for clean, professional sound.

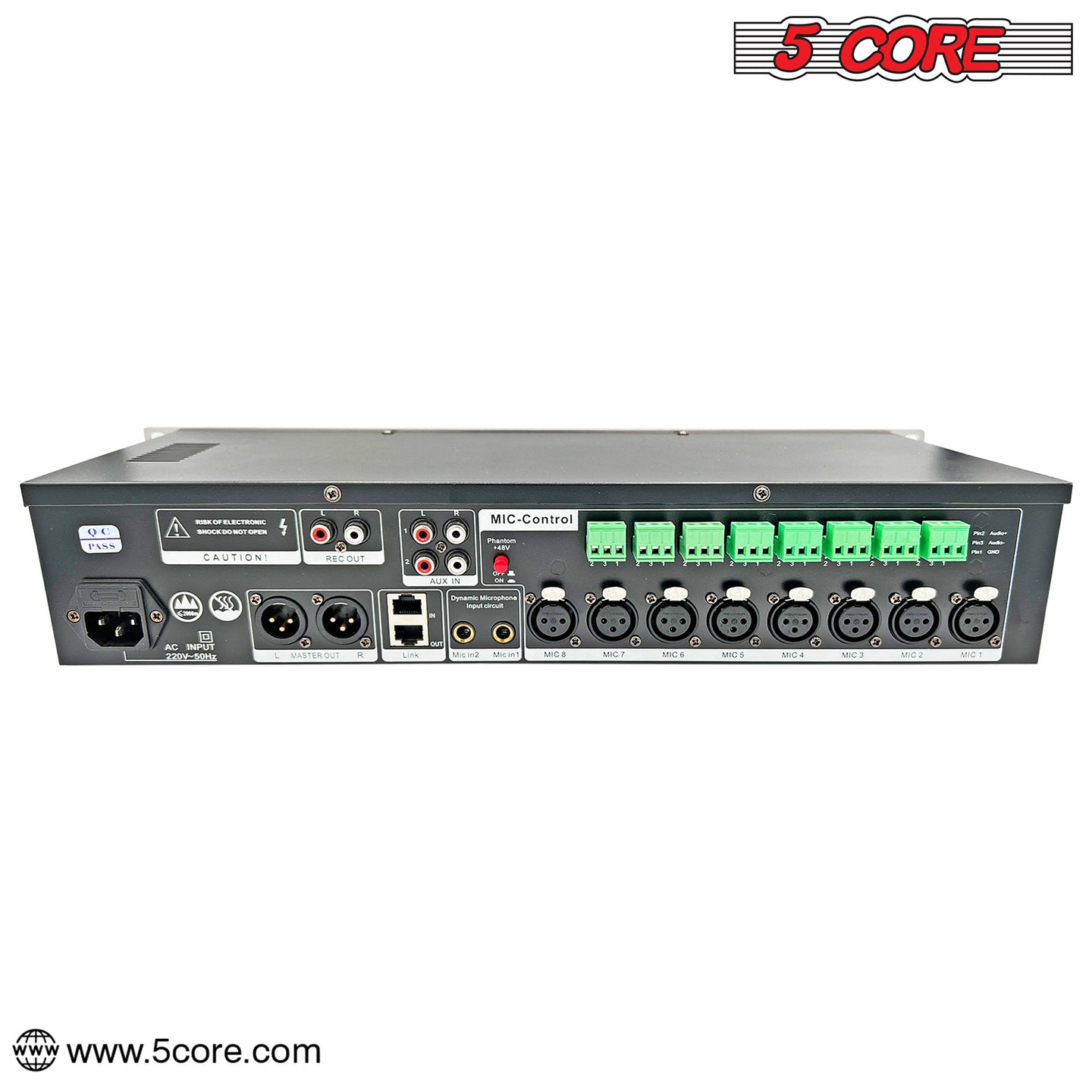

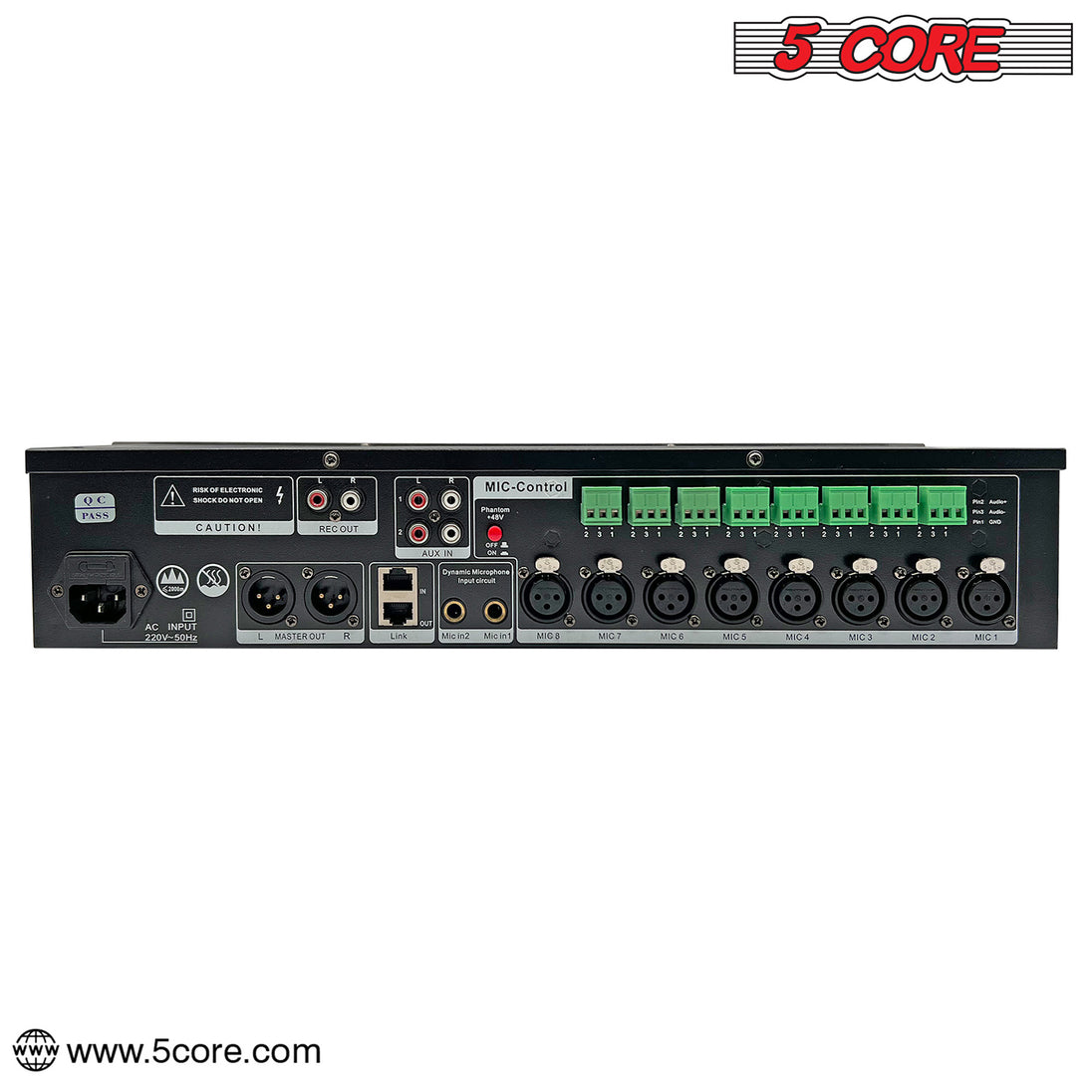

【Versatile Connectivity】Parallel input ports for conference mics, external microphone inputs, and external audio signal inputs for CD/DVD music.

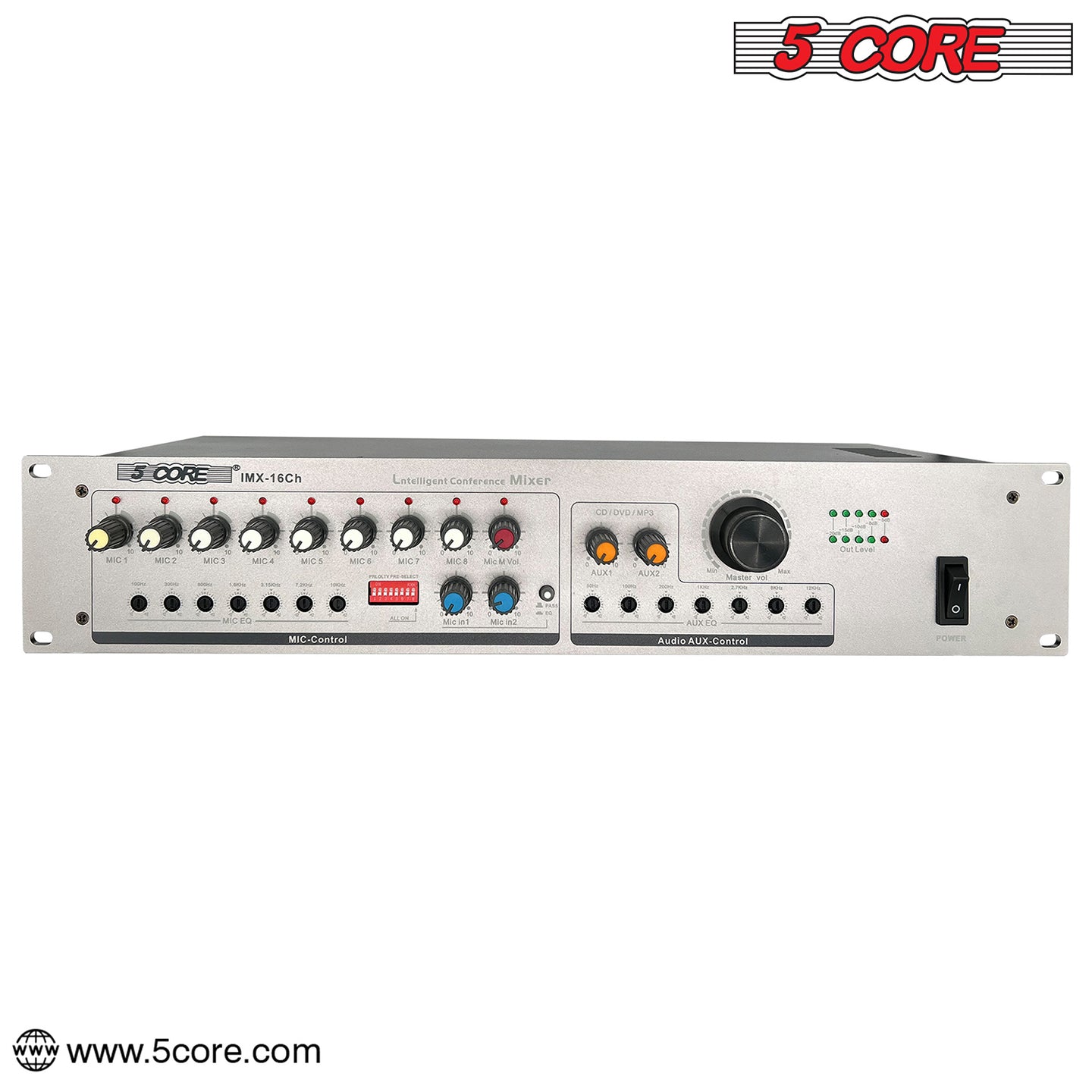

Product Description:
|
Elevate your conference experience with our cutting-edge 16-channel smart conference maker. With 48V phantom power, seamless external device integration, and independent tuning gains, experience unmatched audio precision. The built-in limiter ensures your sound is flawlessly controlled. Take command with a chairman priority control channel, effortlessly managed across all channels, automatically attenuating output levels for focused discussions. Streamline meetings or speeches as the smart mic mixer intuitively activates channels with input signals, optimizing efficiency. Use the 16-Channel Intelligent Conference Smart Mixer and redefine the way you communicate. At 5 Core, Customer satisfaction is our priority—a proven track record of delivering the highest quality product since 1984. |
Features:
|
Enhanced Audio |
Seamless Integration |
Personalized Control |
Smart activation |
|
Elevate your presentation with 48V phantom power and precise gain control. Enjoy crystal-clear audio quality that captivates your audience. |
Connect external devices effortlessly through the unbalanced auxiliary line. This seamless integration allows for hassle-free setup. |
Benefit from independent tuning gain functions for each connection, putting you in the driver's seat of output personalization. |
Experience the convenience of channels automatically coming to life with input signals, optimizing efficiency & valuable time. |

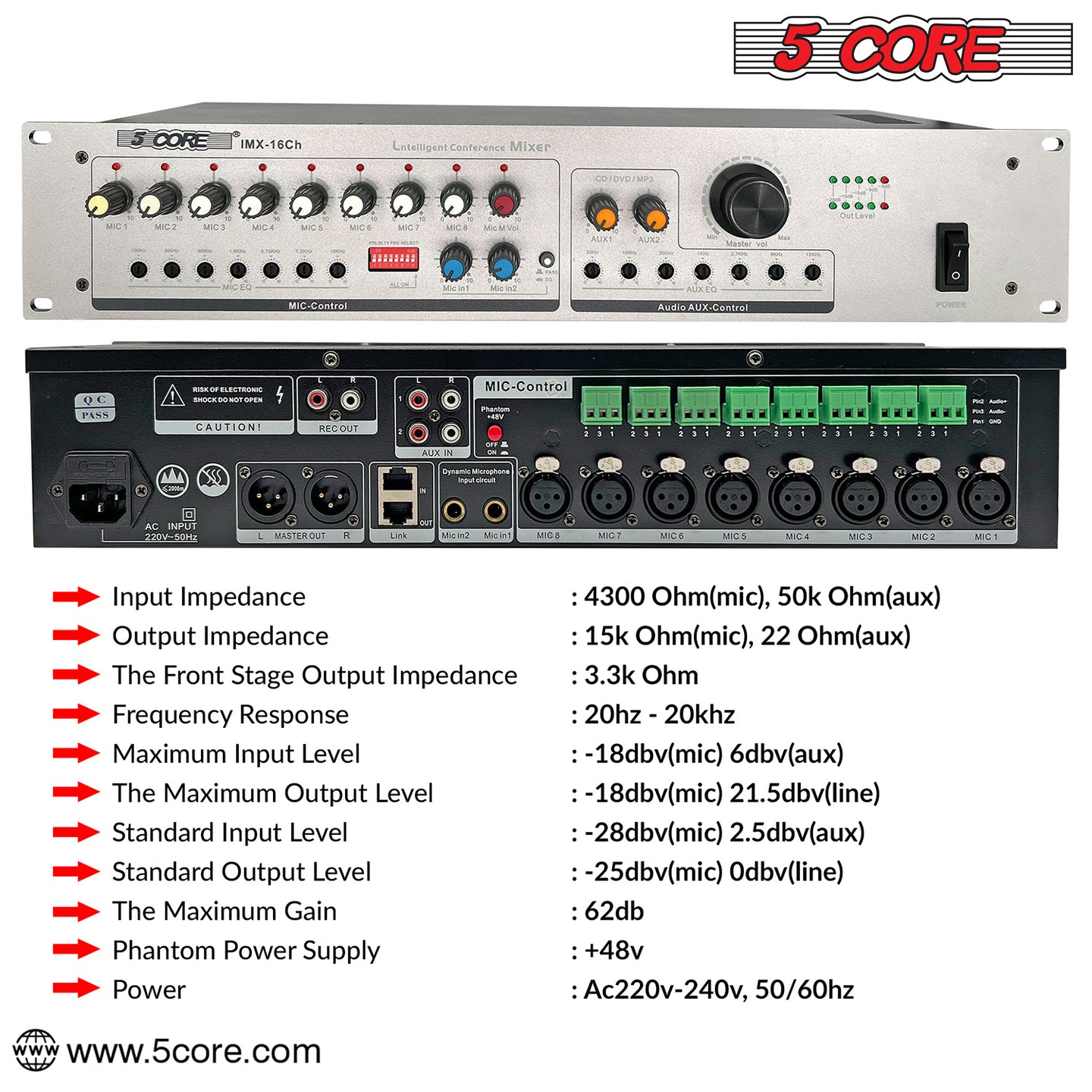

Product Specification:

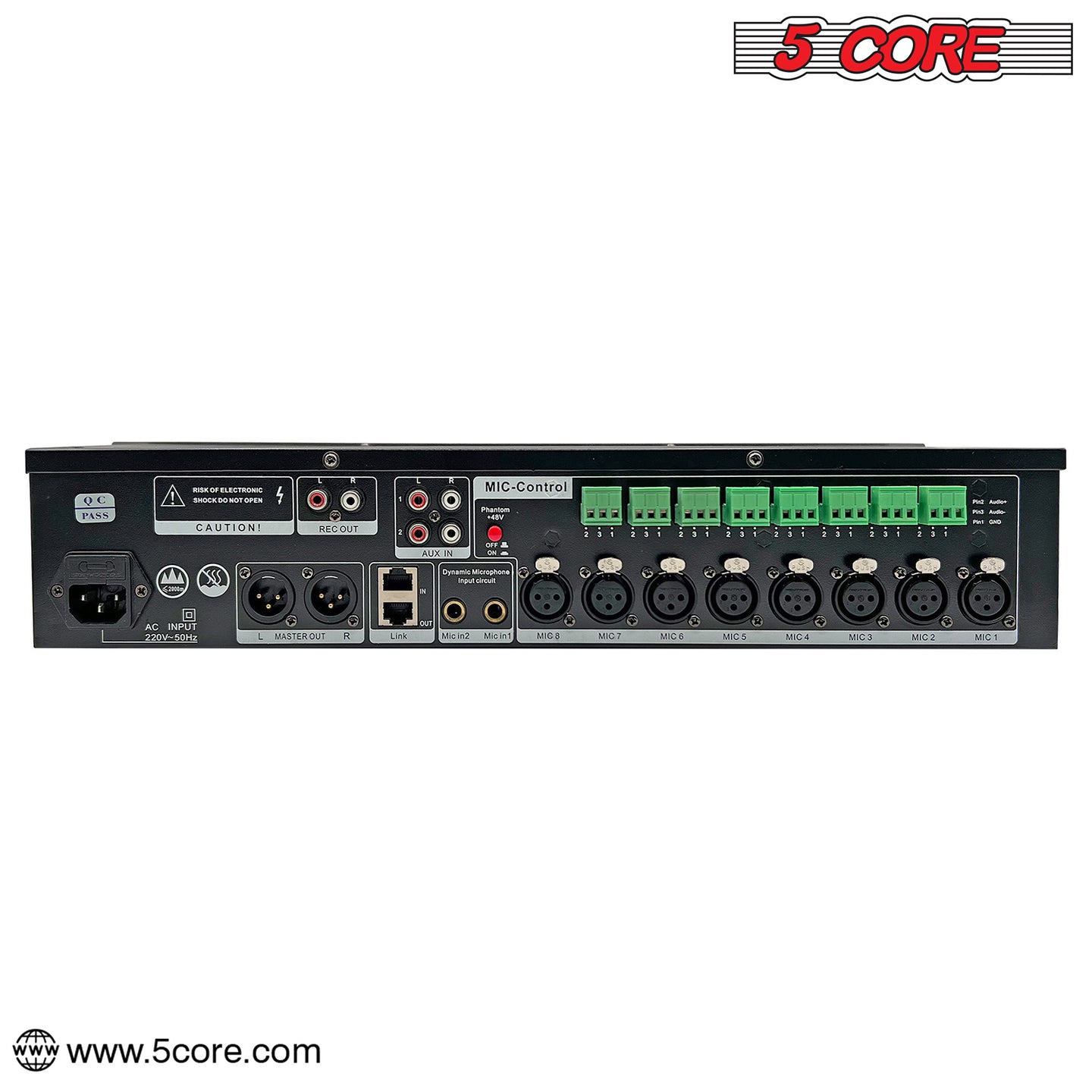

- Parallel input port: (conference microphone1-8)-
- impedance: 4.7KQ
- maximum level:-15dBV
- phantom power: 48V 2mA
- Positive phase input port: (External microphone 1-2)
- impedance: 3. 3KO
- maximum input level:-13dBV
- External audio signal input port:(CD/DVD music)-
- impedance:47K O
- maximum input level: +2dBV
- Audio signal output port:
- impedance: 2. 2K O
- level:0dBV
- Audio signal output port:
- impedance: 75O
- level:0dBV
- System frequency response: 20Hz-20KHz
- Distortion degree: 0.03%
- Signal to noise ratio: 85dB
- Pitch EQ adjustment range: ±12dBV
- power: AC220V
- Power consumption: 15W
- Fixed size standard: 2U (EIA)
- Outline dimension: (H) 88* (W) 482* (D) 200mm
Package information:
1x Conference Smart Mixer
